High Efficiency Nanocrystalline CMC Core

Various packages meet different customer’s demand.
Model: 20×12×10
Core Form: White plastic case
Performance: AL≥40µH@10KHz 0.1V
Core Material: Nanocrystalline strip

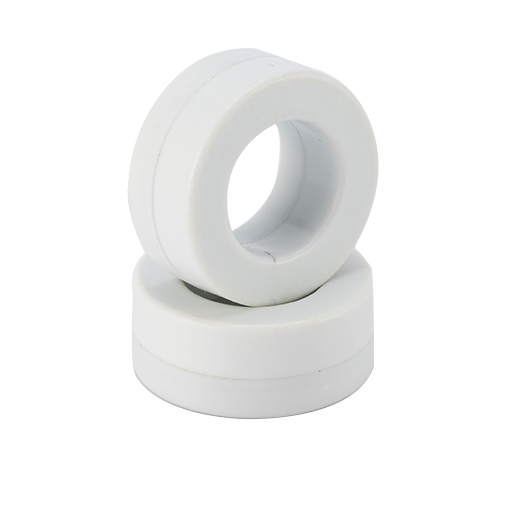

Common mode choke core

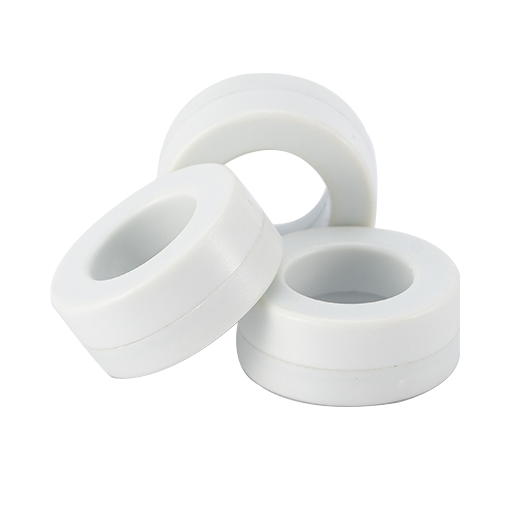

Common mode choke core

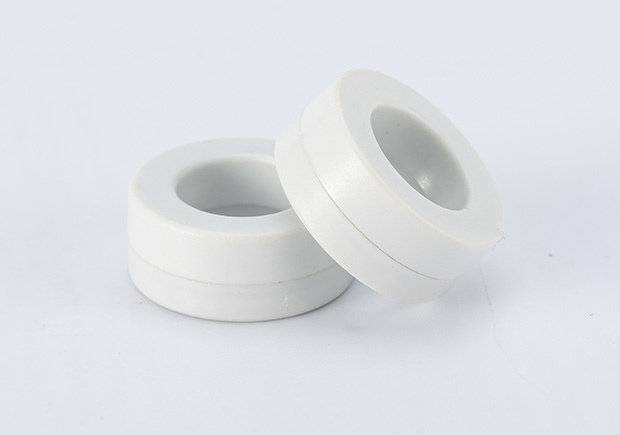

Common mode choke core
Common mode choke core
Introduction
Application
Test certificate
Application
Videos
Related products
Inquiry
Introduction
Spike Suppressor:
1. Better temperature stability
2. Excellent impedance-frequency characteristics
3. Outstanding resistance to unbalanced current
4.High saturation magnetic induction intensity - effectively reduce the size of common mode inductors
Application
FEATURE 1
Inverter circuit
FEATURE 2
Inverter
FEATURE 3
UPS
FEATURE 4
Switching power supply
FEATURE 5
EMC filter inductor
FEATURE 6
New energy such as solar energy, wind energy
Test certificate
Finished By Plastic Case(White)
Manufactured No.   Lot QTY:   Sample QTY 10PCS Bare Weight:   grams
Qualification Standards 100% tested, AQL:1.0 GBT2828II
Test method: Al@1k 0.3v 100Ω Weight: grams Appearance Shaking test
Requirements: >=11uH
Test Result
1 18.5 2.38 OK OK
2 19.7 2.38 OK OK
3 20 2.56 OK OK
4 12.7 2.38 OK OK
5 18.6 2.39 OK OK
6 18.9 2.39 OK OK
7 19.6 2.5 OK OK
8 18.9 2.5 OK OK
9 20.4 2.53 OK OK
10 20 2.56 OK OK
Application
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
