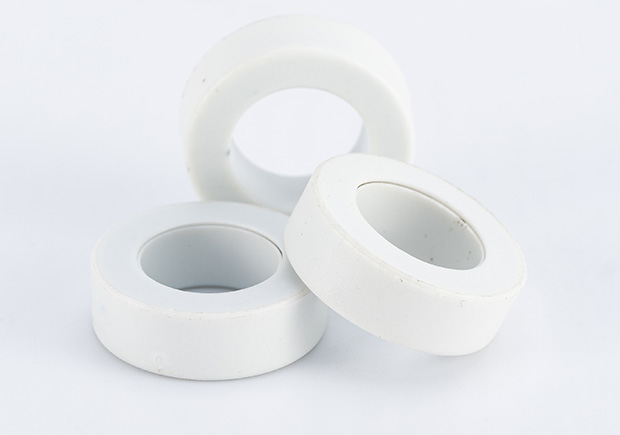

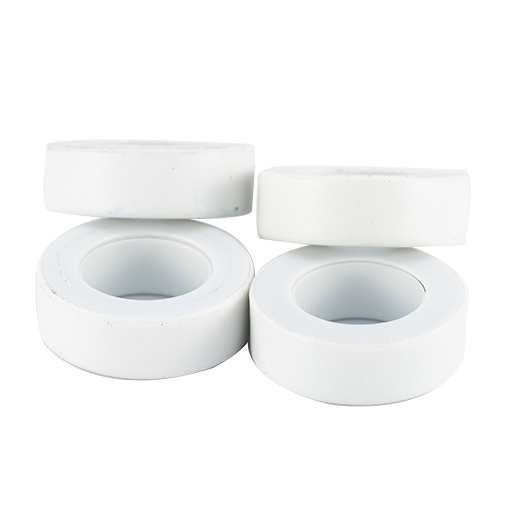

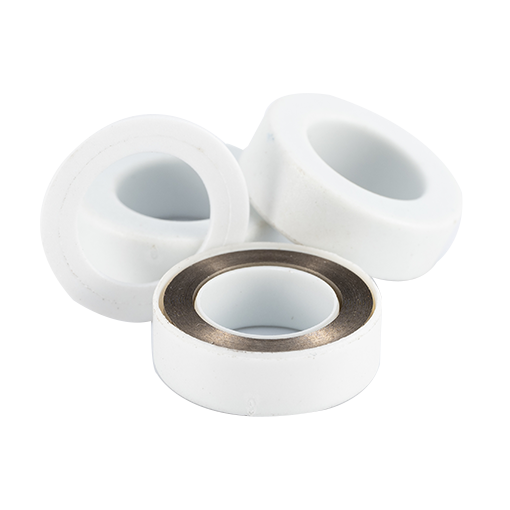

Nano crystalline CMC Core Common Mode Choke Core

Various packages meet different customer’s demand.
Model: 13×18×5
Core Form: White plastic case
Performance: Al≥11μH@1k 0.3v 100Ω
Core Material: Nano crystalline ribbon
Common mode choke core
Common mode choke core
Common mode choke core
Common mode choke core
Introduction
Application
Test certificate
Application
Videos
Related products
Inquiry
Introduction
Spike Suppressor:
1. Better temperature stability
2. Excellent impedance-frequency characteristics
3. Outstanding resistance to unbalanced current
4.High saturation magnetic induction intensity - effectively reduce the size of common mode inductors
Application
FEATURE 1
Inverter circuit
FEATURE 2
Inverter
FEATURE 3
UPS
FEATURE 4
Switching power supply
FEATURE 5
EMC filter inductor
FEATURE 6
New energy such as solar energy, wind energy
Test certificate
Finished By Plastic Case(White)
Manufactured No.   Lot QTY:   Sample QTY 10PCS Bare Weight:   grams
Qualification Standards 100% tested, AQL:1.0 GBT2828II
Test method: Al@1k 0.3v 100Ω Weight: grams Appearance Shaking test
Requirements: >=11uH
Test Result
1 18.5 2.38 OK OK
2 19.7 2.38 OK OK
3 20 2.56 OK OK
4 12.7 2.38 OK OK
5 18.6 2.39 OK OK
6 18.9 2.39 OK OK
7 19.6 2.5 OK OK
8 18.9 2.5 OK OK
9 20.4 2.53 OK OK
10 20 2.56 OK OK
Application
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
