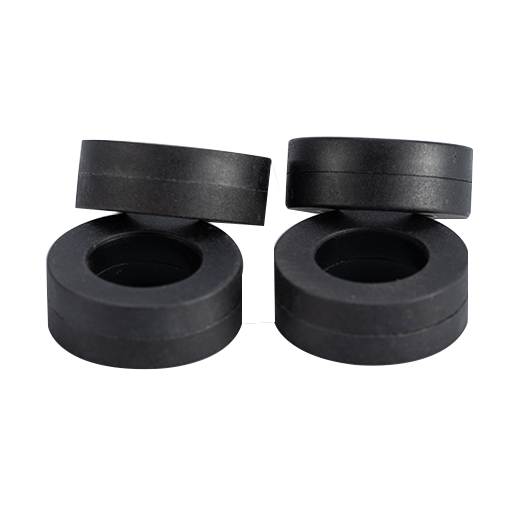

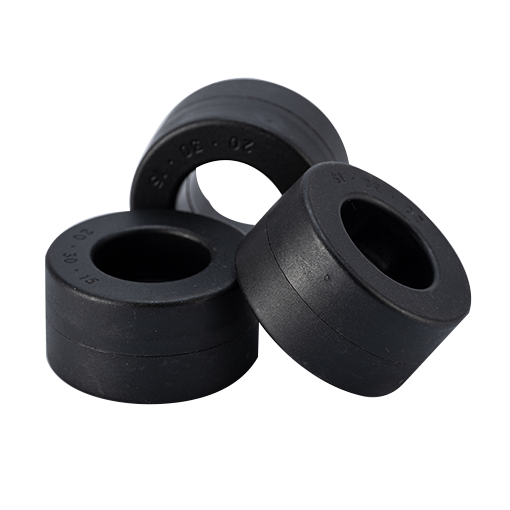

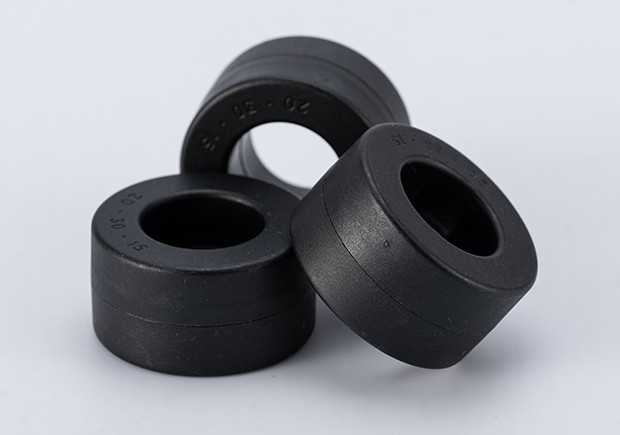

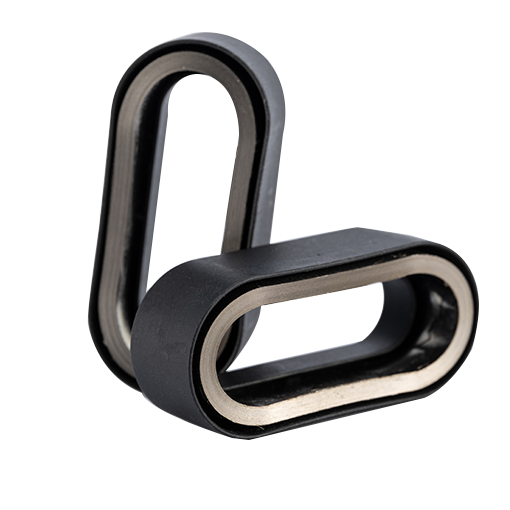

Transformer core

Various packages meet different customer’s demand.
Model: 30×20×10
Core Form: Black plastic case
Performance: 1.5kw power
Core Material: Nano ribbon
Transformer core
Transformer core
Transformer core
Transformer core
Transformer core
Transformer core
Introduction
Advantage
Representative model
Application
Videos
Related products
Inquiry
Introduction
Application
1.Charging power supply
2.Plasma cutting machine
3.Electrolytic Plating Power Supply
4.UPS uninterruptible power supply
5.Inverter welding machine power supply
6.High frequency induction heating power supply
7.Variable frequency speed regulating power supply
Advantage
FEATURE 1
Better temperature stability
FEATURE 2
High saturation magnetic induction
FEATURE 3
High permeability and low coercivity
FEATURE 4
Effectively reduce the transformer volume and the weight
FEATURE 5
It can work for a long time at the temperature of -45℃~130℃
FEATURE 6
High-power design - to meet the customization of large-sized iron cores
Representative model
Bare core size Core size with plastic case Effective cross-sectional area Effective magnetic path length Weight Power
OD×ID×HT(mm) OD×ID×HT(mm) Afe(cm²) Lfe(cm) W(g) KW
50×32×20 54×28×24 1.35 12.87 125 1-1.5
64×40×20 66×37×23 1.72 16.3 215 1﹣2
70×40×25 72×37×28 2.81 17.3 265 1﹣2
80×50×25 85×44×30 2.81 20.4 416 3
100×50×25 105×45×44 4.69 23.56 805 8
110×60×20 116×55×25 3.5 26.69 725 5﹣7
120×70×20 125×67×25 3.6 29.8 811 10
120×70×25 125×67×30 4.6 29.8 1014 8﹣10
80×50×20 85×44×25 2.1 20.56 332 2﹣3
Application
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Videos
Bidragon Green Epoxy Nano Core 48x26x18
Bidragon Green Epoxy Nano Core 48x26x18
BIDRAGON Nanocrystalline Mini Core 5x3x3 for Single Phase Smart Meter
BIDRAGON Nanocrystalline Mini Core 5x3x3 for Single Phase Smart Meter
BIDRAGON DC Immune CT Core 17*24*8
BIDRAGON DC Immune CT Core 17*24*8
