Nanocrystalline CMC Iron Core

Various packages meet different customer’s demand.
Model: 12×8×5
Core Form: White plastic case
Performance: AL>20μH@10KHz 1V 100Ω
Core Material: Nano crystalline ribbon

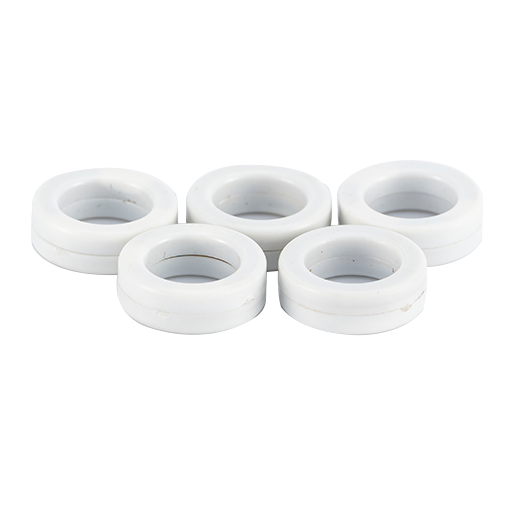

Common mode choke core

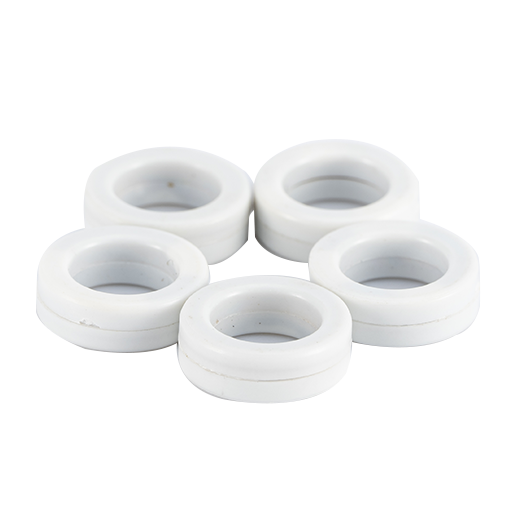

Common mode choke core

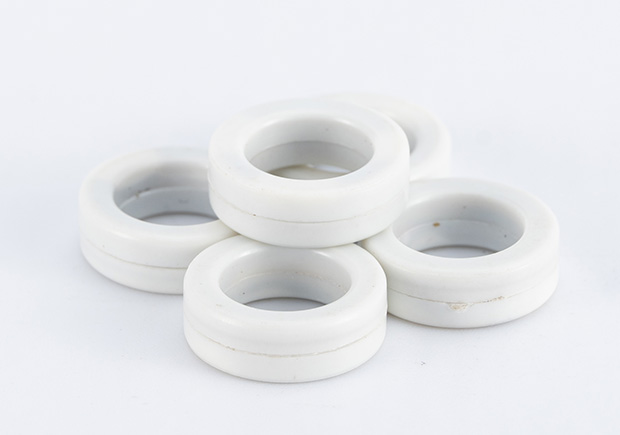

Common mode choke core
Common mode choke core
Introduction
Application
Test certificate
Application
Videos
Related products
Inquiry
Introduction
Spike Suppressor:
1. Better temperature stability
2. Excellent impedance-frequency characteristics
3. Outstanding resistance to unbalanced current
4.High saturation magnetic induction intensity - effectively reduce the size of common mode inductors
Application
FEATURE 1
Inverter circuit
FEATURE 2
Inverter
FEATURE 3
UPS
FEATURE 4
Switching power supply
FEATURE 5
EMC filter inductor
FEATURE 6
New energy such as solar energy, wind energy
Test certificate
Dimensions The finished size The bare core size
OD 14.5  x ID 6.3x Ht 7     (mm) OD 12x ID 8 x Ht 5 mm
Finished By Plastic Case(White)
Lot QTY: 25pcs Bare Weight:   grams
Qualification Standards 100% tested, AQL:1.0 GBT2828II
Test method: Al @10k 1v 100Ω Appearance Shake test Core weight
Requirements: >20
Test Result
1 24.5 ok ok 2.71
2 33.7 ok ok 2.71
3 35.1 ok ok 2.71
4 33.9 ok ok 2.71
5 34.3 ok ok 2.71
6 36.7 ok ok 2.71
7 23.2 ok ok 2.71
8 31.6 ok ok 2.71
9 29.5 ok ok 2.71
10 36.1 ok ok 2.71
