Leakage Protection Switch Nanocrystalline Core

Various packages meet different customer’s demand.
Model: 13×17.8×5
Core Form: Epoxy
Performance: AL≥16μH @1KHz 0.3V 100Ω
Core Material: Nano crystalline strip

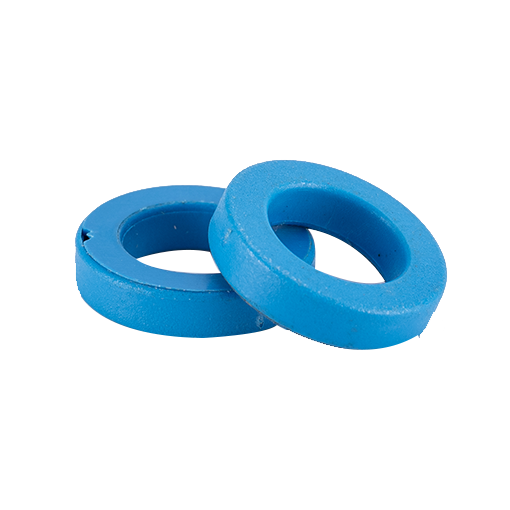

Leakage protection switch nano core

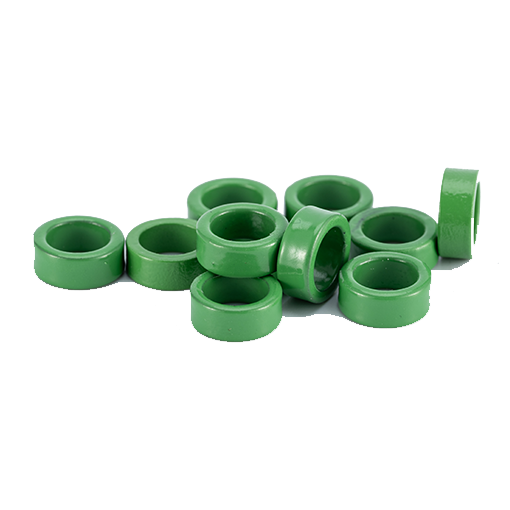

Leakage protection switch nano core

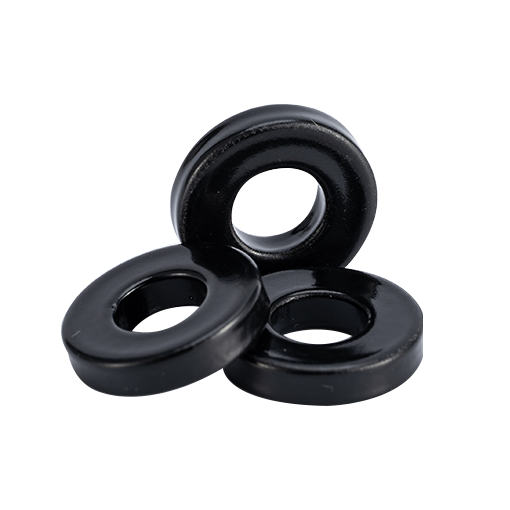

Leakage protection switch nano core

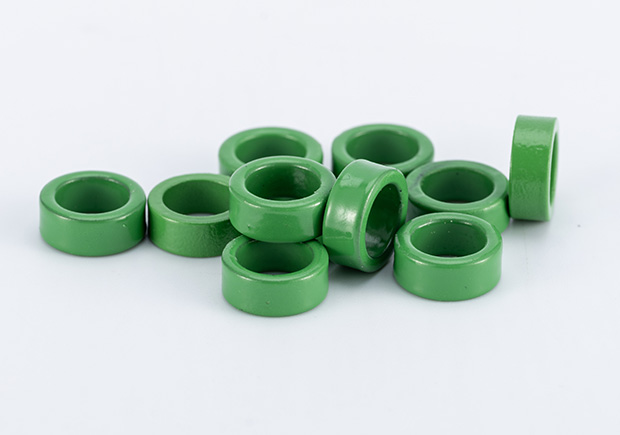

Leakage protection switch nano core
Leakage protection switch nano core
Leakage protection switch nano core
Introduction
Feature
Representative model
Application
Videos
Related products
Inquiry
Introduction
Application
1.Electromagnetic leakage protection switch
2.Electronic leakage protection switch
Advantages
1. Better temperature stability, can work stably at -15℃-100℃
2. Nanocrystalline core has high permeability, low coercivity and low loss
3. Sensitive to weak leakage current, with good resistance to large current impact
Feature
FEATURE 1
Has Reach certificate for epoxy material.
FEATURE 2
Magnetic permeability can adjustable between 150~1200
FEATURE 3
High saturation magnetic induction
FEATURE 4
Low corecivity
FEATURE 5
Low core loss
FEATURE 6
ODM available
Representative model
Bare core size(mm) Core size with plastic case(mm) Input Current I(MA) Minimum output voltage
ID×OD×HT ID×OD×HT AC 10KHZ
13×17.8×5 19.6×11.6×6.4 50 1.4
14×19×3.2 12.3×21.5×5.4 50 0.6
14×19×6.5 12.0×22.1×9.0 50 1.5
14×19×8 12.1×22.5×10.1 50 1.8
14×20×10 12.1×22.5×12.2 50 2.4
16×21×10 14×24.5×12.5 50 2
Application
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Videos
BIDRAGON DC Immune core 4x3x1 for Single Phase Energy Meters
BIDRAGON DC Immune core 4x3x1 for Single Phase Energy Meters
BIDRAGON Nano EMC Common Mode Choke Cores 6x 4x 3
BIDRAGON Nano EMC Common Mode Choke Cores 6x 4x 3
Bidragon Green Epoxy Nano Core 48x26x18
Bidragon Green Epoxy Nano Core 48x26x18
