PFC inductor magnetic core

Various packages meet different customer’s demand.
Model: Sizes can be customized.
Core Form: Plastic Case
Core Form: Amorphous materials
Packing: Two different package for air and sea shipment

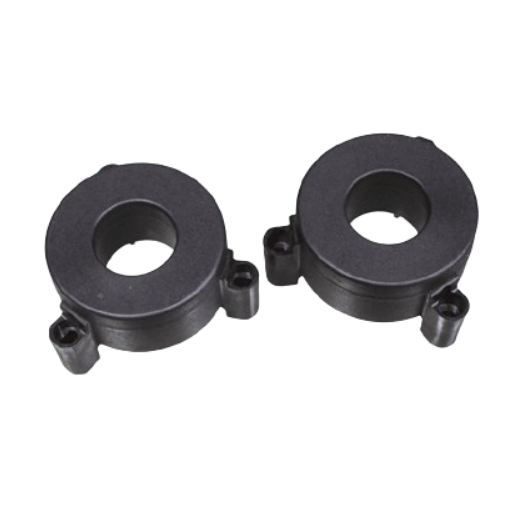

PFC inductor magnetic core2
PFC inductor magnetic core2
Application
Comparison of parameters
Application
Videos
Related products
Inquiry
Application
FEATURE 1
PFCD in Dc inverted frequency air-conditioner
FEATURE 2
PFCUPS in uninterruptible power supply
FEATURE 3
PFCSMPS in SMPS switch power supply
FEATURE 4
PFC in plasma TV
FEATURE 5
PFC in inverter circuit
FEATURE 6
PFC
Comparison of parameters
Performance index Iron-based amorphous Nanocrystalline alloy Permalloy Cold silicon steel
Saturated magnetic
induction (Bs) (T)
1.56 1.25 0.75T 2.03
Maximum permeability ( mm) 45*10⁴ 60*10⁴ 60*10⁴ 4*10⁴
Initial permeability ( mO) 103~10⁴ 4~8*10⁴ 5~8*10⁴ ~103
Coercivity(Hc) ( A/M) 4 1.2   30
Iron loss ( W/Kg) P1.0T/1KHz<4 P0.2T/1KHz<3.4   P1.0T/1KHz<20
Electric resistivity (r) ( mW. cm) 130 90   47
Curie temperature (℃)   570 400 740
Specific gravity (d) (g/cm3) 7.2 7.25 8.75 7.65
Thickness of strip ( mm) 0.03 0.03 0.15 0.3

Model of magnetic core Size of magnetic core Finished size Length of
magnetic path
Effective sectional area Gram weight
TD(mm) ID(mm) H(mm) TD(mm) ID(mm) H(mm) Le(cm) Ae(cm²) g
BD-SJ-040025015 40 25 15 45 20 20 10.21 90 66
BD-SJ-050032015 50 32 15 55 27 20 12.88 108 100
BD-SJ-060035025 60 35 25 65 30 30 14.92 250 270
BD-SJ-020012010 64 40 20 69 35 25 16.33 192 220
BD-SJ-025016010 70 40 25 75 35 30 17.27 300 370
BD-SJ-030020010 26 16 10 30.6 14 13.6 6.59 40 19.12
BD-SJ-032020010 30 20 10 38.7 18 136 7.85 40 22.77

Note: We can provide other specifications of cores according to customer requirements.
