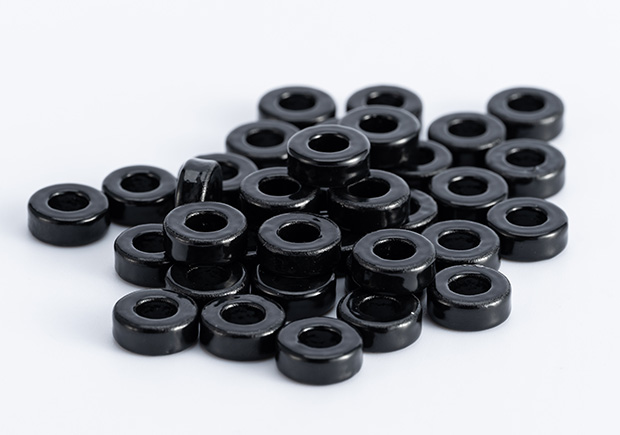

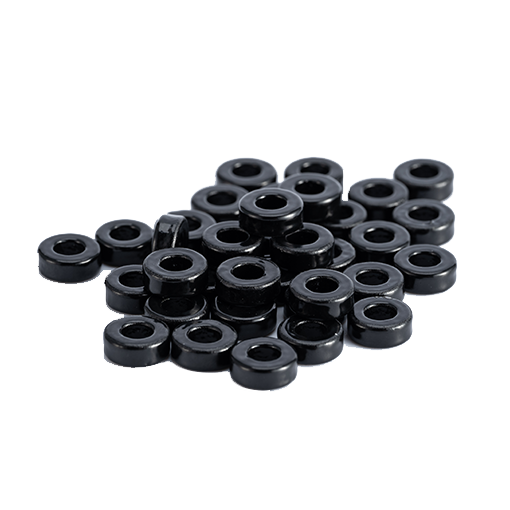

Large Inductance Amorphous Toroidal Core

Various packages meet different customer’s demand.
Model: 8×4.1×3
Core Form: Epoxy core
Performance: Al≥400μH@100KHz .25V
Core Material: Amorphous ribbon
Package: Two different package for air and sea shipment
Car Audio Amorphous Core
Car Audio Amorphous Core
Introduction
Feature
Specification
Application
Videos
Related products
Inquiry
Introduction
Large Inductance Amorphous Beads
Due to different appearance, amorphous core include plastic Fe-based amorphous core and epoxy Fe-based wound amorphous core; According to the size, this Fe-based magnetic core is divided into high saturation amorphous beads and filter inductance iron cores. It can used in iron-based amorphous filter inductor and spike suppressor.
COMPARE
1.100% test before delivery
2. Have better performance in electric car.
3.Has Reach certificate for epoxy material.
Feature
FEATURE 1
Has Reach certificate for epoxy material.
FEATURE 2
Magnetic permeability can adjustable between 150~1200
FEATURE 3
High saturation magnetic induction
FEATURE 4
Low corecivity
FEATURE 5
Low core loss
FEATURE 6
ODM available
Specification
1. Product number:8.1YQ
2. Electromagnetic parameters
Specification Test Condition Test Value
Lo 100kHz 0.25v  65Ts 0ADC >=400μH
Lv 100kHz 0.25v  65Ts 1ADC >=50μH
3. Core material: iron-based amorphous
4. Core form: black
5. Core weight: 0.7g

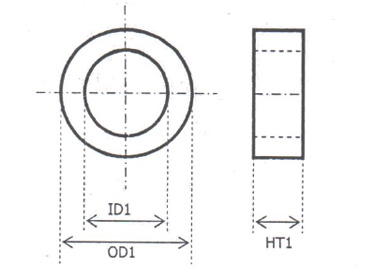

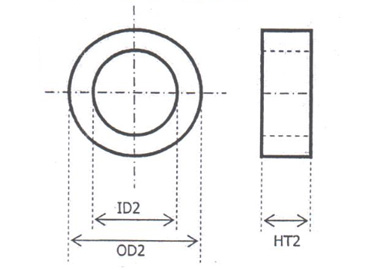

6.Core size (mm) 7.Core appearance size (mm)
OD1=8.0±0.1 OD2=3.6±0.3
ID1=4.1±0.1 ID2= 8.7±0.2
HT1=3.0±0.1 HT2 Max=3.75
Application
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
