Air Gap Amorphous Inductor Core

Various packages meet different customer’s demand.
Model: 16×23×10
Core Form: Epoxy core
Performance: Accuracy class:0.5-0.1
Core Material: Amorphous Ribbon
Package: Two different package for air and sea shipment
Air Gap Amorphous Inductor Core
Air Gap Amorphous Inductor Core
Introduction
Feature
Specification
Application
Videos
Related products
Inquiry
Introduction
Air Gap Amorphous Inductor Core

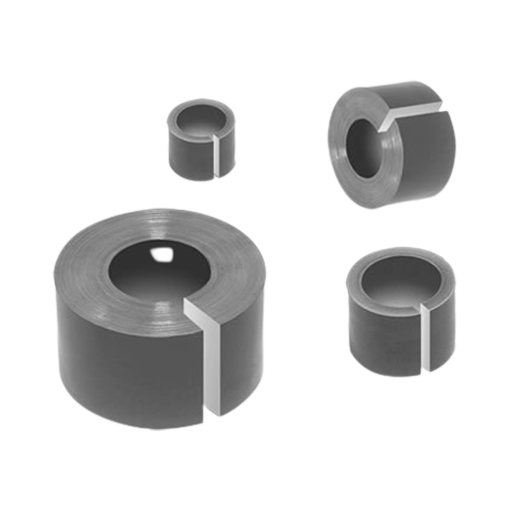

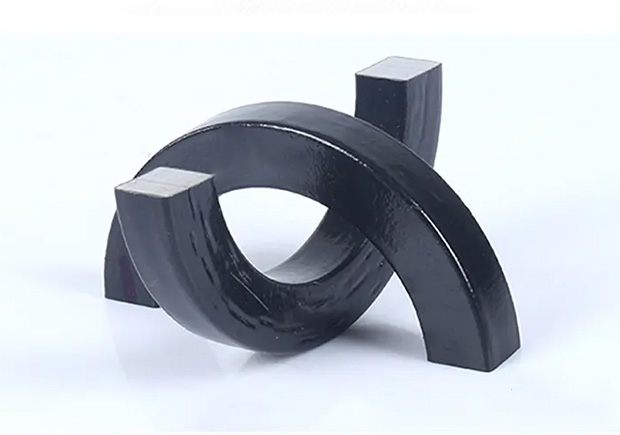

Due to different appearance, amorphous core include plastic Fe-based amorphous core and epoxy Fe-based wound amorphous core; According to the size, this Fe-based magnetic core is divided into high saturation amorphous beads and filter inductance iron cores. It can used in iron-based amorphous filter inductor and spike suppressor.
COMPARE
1.Cut flat
2.No glitches
3.Has Reach certificate for epoxy material.
Feature
FEATURE 1
High initial permeability. High product accuracy and small error (ratio difference and angular difference)
FEATURE 2
High saturation magnetic induction, wide detection current range.
FEATURE 3
Low coercivity, more stable product performance, more sensitive to weak current induction.
FEATURE 4
Good thermal stability. Small change in permeability and error thermal shock
FEATURE 5
High Curie temperature, excellent temperature characteristics.
FEATURE 6
Long-term working temperature: -50~+130℃
Specification
core size(mm) finished size(mm) accuracy class DC current
OD×ID×HT OD×ID×HT
16×23×10 14.0×25.0×13.0 0.5-0.1 80A
16×25×8 13.7×27.8×10.8 0.5-0.1 80-100A
16×25×10 13.7×27.8×12.8 0.5-0.1 100-120A
17×22×10 15.1×24.3×12.1 0.5-0.1 60A
17×24×8 15.3×26.3×9.9 0.5-0.1 60A
17×25×10 15.2×28.0×13.0 0.5-0.1 80-100A
17×28×8 15.2×29.8×10.1 0.5-0.1 60-100A
18×24×10 15.9×26.8×12.5 0.5-0.1 60-100A
19×27×8 116.8×29.1×9.85 0.5-0.1 60-100A
19×28×10 17.0×30.0×12.2 0.5-0.1 100-120A
20×30×8 18.1×32.7×9.9 0.5-0.1 100-120A
