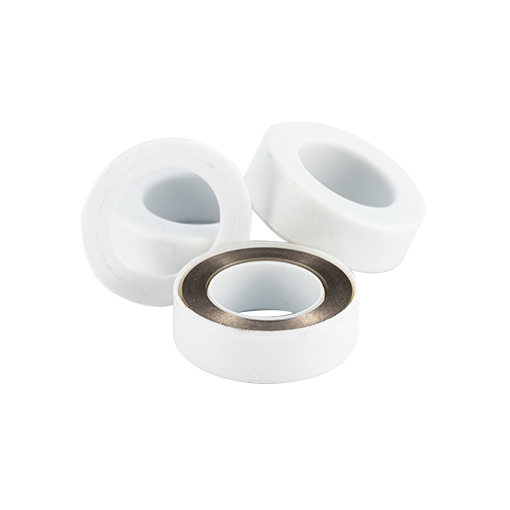

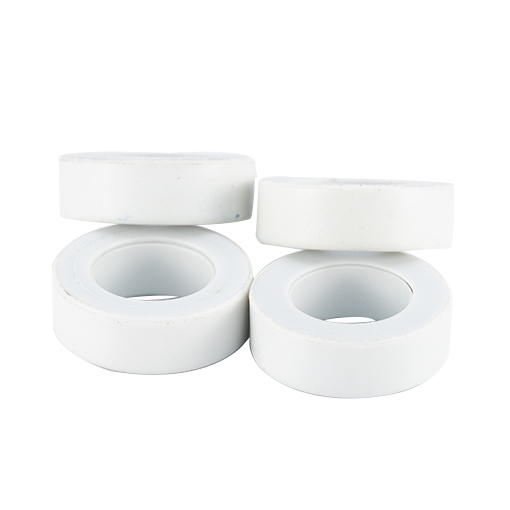

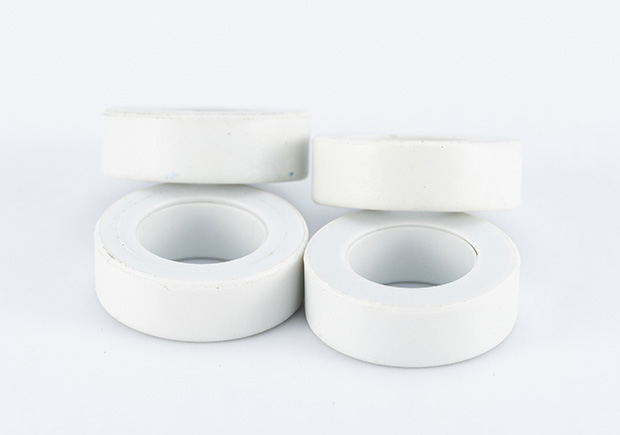

Co-Based Amorphous Toroidal Core

Various packages meet different customer’s demand.
Model: 10×16×6
Core Form: White plastic case
Performance: total flux =16.6μ Wb@25℃,total flux =14.4μ Wb@25℃
Core Material: Co-based amorphous strip
Package: Two different package for air and sea shipment
Co-Based Amorphous Core
Co-Based Amorphous Core
Co-Based Amorphous Core
Co-Based Amorphous Core
Introduction
Feature
Specification
Application
Videos
Related products
Inquiry
Introduction
Co-Based Amorphous Core
Due to different appearance, amorphous core include plastic Co-based amorphous core and epoxy Co-based amorphous toroidal core; According to the size, this Fe-based magnetic core is divided into high saturation amorphous beads and filter inductance iron cores. It can used in iron-based amorphous filter inductor and spike suppressor. Bidragon Group have angaged in supplying amorphous & nano ribbon and core for many years, and our amorphous & nano core has passed the ISO 9001 certificate, at the same time, our producs has got CE certificate. Until now, our amorphous core and nano core has exported to many countries, including India, Korea, Russia, France, America, etc.
COMPARE
1.Plastic case color can change
2.Has price advantage due to full automatic production line.
3.There is a foam pad inside to prevent shaking
Feature
FEATURE 1
Low core loss
FEATURE 2
High inductance
FEATURE 3
Low magnetostrictive coefficient
FEATURE 4
Work stable under extreme conditions
FEATURE 5
Has excellent soft magnetic properties
FEATURE 6
ODM available
Specification
ltem Unit Reference value
 Saturation flux density (25"C) T 0.58
Saturation magnetostrictive cofficient(λs) - <0.2×10-6
Bipolar flux density (25"C) T 1.15
Bipolar flux density (90"C) T 1
Rectangular ratio Br/Bs - ≥96%
Curie temperature, (Tc) °C 240
Continuous operation temperature °C 90

Representative model
Bare Core Size Core Size with plastic case(mm) Effective cross section Mean effective pathlength Core weight Total flux(25°C) Total flux(90°C) Effective winding Area
OD×ID×HT OD×ID×HT Afe cm2 Ife cm mFe g Φss  μ Wb Φss,90°C μWb Acu cm2
16×10×6 17.9×8.2×8.2 0.144 4.08 4.5 16.6 14.4 0.131
17.5×12.5×6 19.1×10.9×8.1 0.12 4.71 4.4 13.8 12 0.231
19×15×5 21.2×13.0×7.3 0.08 5.34 3.3 9.2 8 0.329
19×15×10 21.2×13.0×12.3 0.16 5.34 6.6 18.4 16 0.329
20×12.5×8 22.6×10.3×10.2 0.24 5.1 9.4 27.6 24 0.206
25×20×10 22.7×17.2×12.9 0.2 7.1 10.9 23 20 0.568
25×16×10 27.9×13.6×12.5 0.36 6.44 17.9 41.4 36 0.36
30×20×10 32.8×17.6×12.5 0.4 7.85 24.2 46 40 0.602
10×8×4 11.6×6.5×5.1 0.032 2.83 0.7 3.7 3.2 0.082
10.1×6.9×4.5 11.6×5.5×6.0 0.058 2.67 1.2 6.7 5.8 0.059
12.8×9.5×3.2 14.7×7.9×4.8 0.042 3.5 1.1 4.8 4.2 0.121
12×8×4.5 14.0×6.6×6.2 0.07 3.14 1.7 8.1 7 0.085
12.5×10×5 14.0×8.5×6.8 0.05 3.53 1.4 5.8 5 0.14
14×8×4.5 15.5×6.5×5.7 0.108 3.46 2.9 12.4 10.8 0.082
15×10×4.5 17.1×7.9×6.5 0.09 3.93 2.7 10.4 9 0.121
10.7×8.2×4.5 14×6.6×6.2 0.045 2.97 1 5.2 4.5 0.085
