Your Position : Home > Products > Magnetic Ribbons

Slitted Nanocrystalline Ribbon

Various packages meet different customer’s demand.
Model: 1K107B
Material: Fe based
Lamination factor: 78-84%
Applicable frequency: ≥10KHz

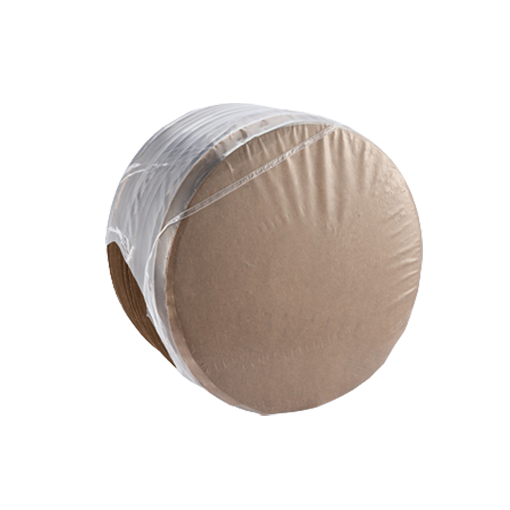

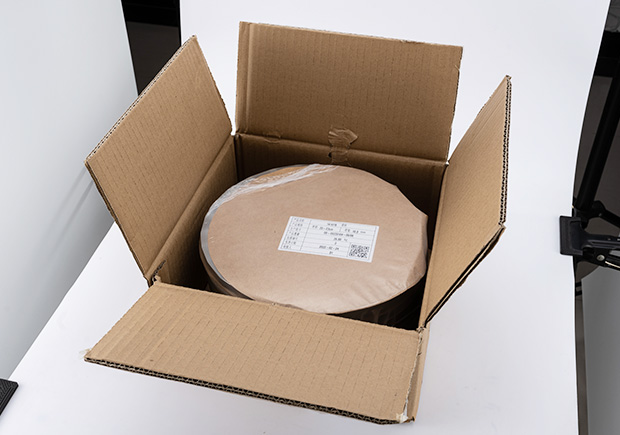

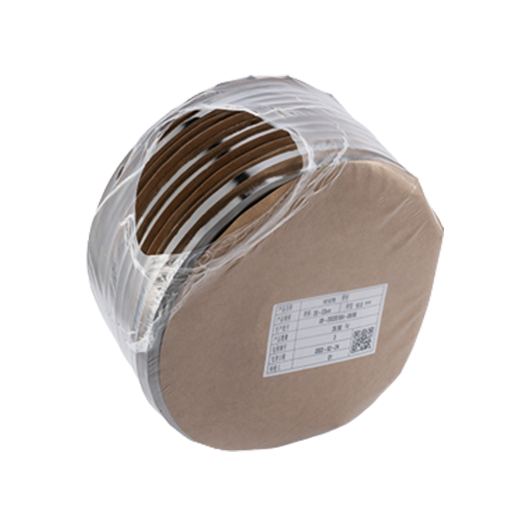

Package: Vacuum packaging and non-vacuum packaging
Send Email
Chat Now
Whatsapp:+86-13373703313
Nano Ribbon
Nano Ribbon
Nano Ribbon
Nano Ribbon
Introduction
Feature
Specification
Application
Videos
Related products
Inquiry
Introduction
COMPARE 1:
Fe-Based Nano-Crystalline Ribbon is made of Fe, Si, B, Nb, Cu and so on which is high permeability, high saturation magnetic induction, low loss, high toughness, good wear and corrosion resistance and excellent stability. It can replace the silicon steel, permalloy and ferrite and be used to medium and High Frequency Transformer, mutual inductor and most electronic parts. Especially it is the most cost-efficient in all amorphous ribbons.
Feature
FEATURE 1
High temperature stability
FEATURE 2
Low loss - reduce temperature rise
FEATURE 3
Low coercivity - improving efficiency
FEATURE 4
Low magnetic extension - reduce noise
FEATURE 5
Wide adjustable range of permeability (400-900,000)
FEATURE 6
Used to make high-end common mode inductors, high frequency power transformers, precision current transformers, magnetic amplifiers and shielding sheets
Specification
Item Performance Item Performance
Magnetic saturation induction intensity Bs(T) ≥1.2 Permeability μ(10kHz) ≥60000
Curie temperature Tc(℃） 570 Permeability μ(100kHz) ≥10000
Thickness (μm) 18-25 Saturation magnetostriction coefficient (λs) 0.000002
Permeability μ(1kHz) ≥80000 Coercivity Hc(A/m) <1.6

Specification of nano-crystalline ribbon
Width (mm) Thickness (mm) Thickness (mm)
3 21-23 23-26
3.2 21-23 23-26
4 21-23 23-26
4.5 21-23 23-26
5 21-23 23-26
6 21-23 23-26
6.5 21-23 23-26
7 21-23 23-26
7.6 21-23 23-26
8 21-23 23-26
10 21-23 23-26
12 21-23 23-26
13 21-23 23-26
15 21-23 23-26
17 21-23 23-26
18 21-23 23-26
20 21-23 23-26
24 21-23 23-26
25 21-23 23-26
30 21-23 23-26
Application
used-in-smart-grid
Used In Smart Grid
used-in-avionics
Used In Avionics
used-in-current-transformer
Used In Current Transformer
Used-In-New-Energy-Vehicles
Used In New Energy Vehicles
Used In Household Appliances
Used In Household Appliances
used-in-smart-meter
Used In Smart Meter
Videos
Nanocrystalline Ribbon 1K107 Fe based Nano Strips
Nanocrystalline Ribbon 1K107 Fe based Nano Strips
